CNLINKO M16 10A DC AC Power Supply Cables Connector Waterproof IP68 4 Pin Metal and Plastic Connector LED Lighting Plug Socket

Name: CNLINKO M16 10A DC AC Power Supply Cables Connector Waterproof IP68 4 Pin Metal and Plastic Connector LED Lighting Plug Socket
Brand: CNLINKO
Price: 3.25 USD

China CNLINKO M16 10A DC AC Power Supply Cables Connector Waterproof IP68 4 Pin Metal and Plastic Connector LED Lighting Plug Socket wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-16-C04PE-01-001

MOQ : 2

Price : $3.25-3.79

Type : Power

Application : Industrial

Gender : Male and Female

Cable Specification : 1.0mm2-1.5mm2/18-16AWG

Diameter range : OD3-7MM

Contact diameter x number : OD1.5*3

Rated Current : 10A

Operating voltage : 400V

Product name : LP-16 waterproof connector

Material : PBT

Certificate : ISO9001/CE/ROHS/REACH/MSDS

Pin : 2-12pin

Protection Level : IP68

Contact Now

CNLINKO M16 10A Power Waterproof IP68 4 pin Connector LED Lighting Plug Socket

Features:

With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP68 when mated
Current rating:5A/10A rms
Please indicate if you need the protection level more high

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	1.0~1.5mm² /18-16AWG

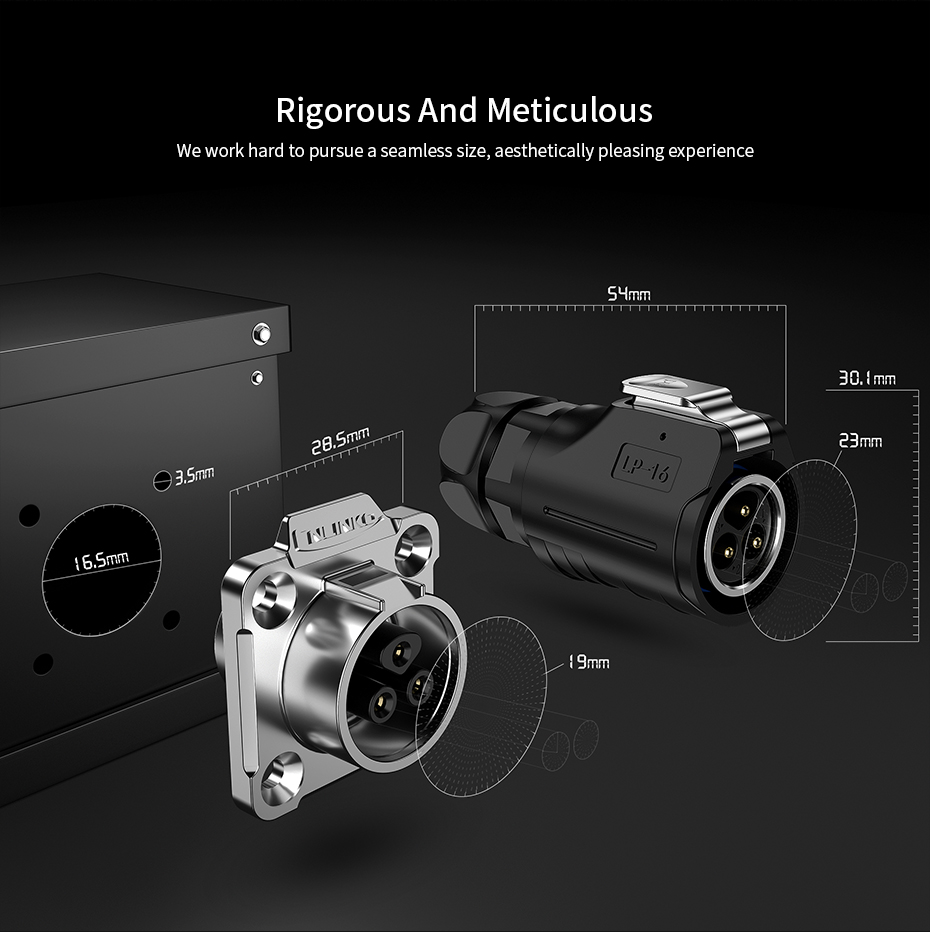

Diameter range	Φ3mm ~Φ8.5mm
Contact diameter×Qty	Φ1.5×4
Current rating(A)	10A
Temperature rise	12A contact temperature below 40℃ 15A contact temperature below 50℃
Operating voltage(AC.V.rms)	400V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<10mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

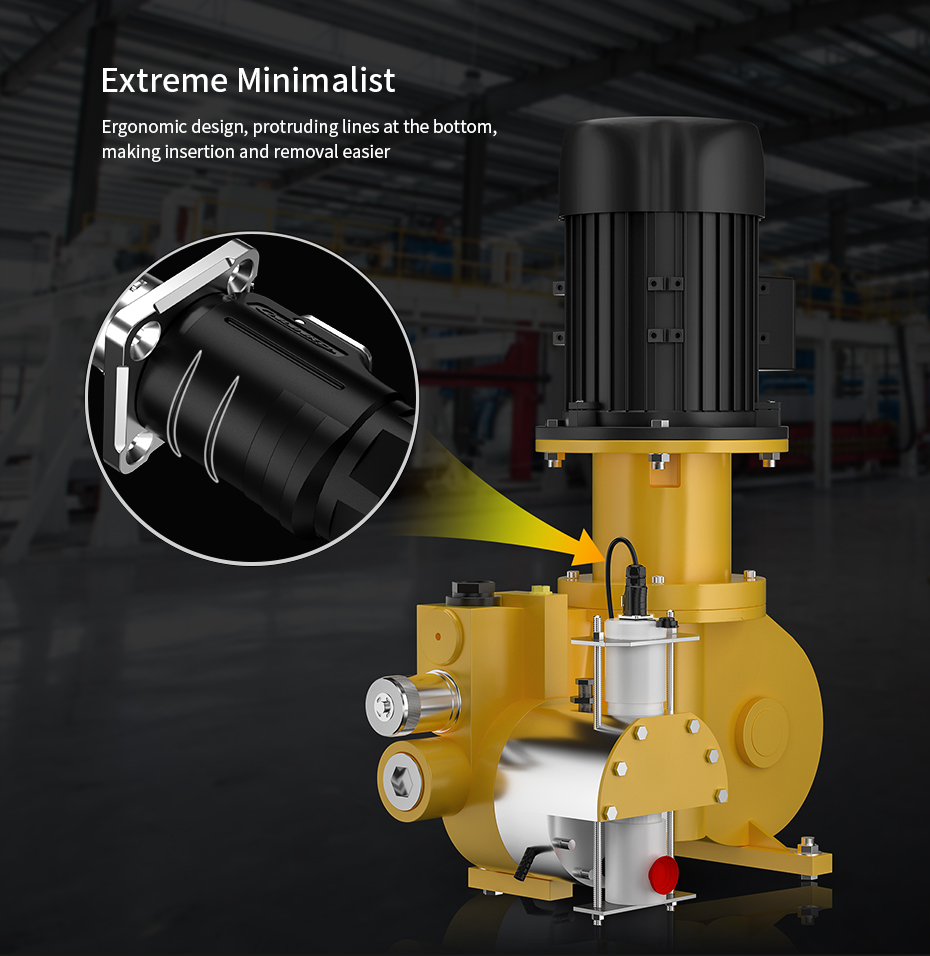

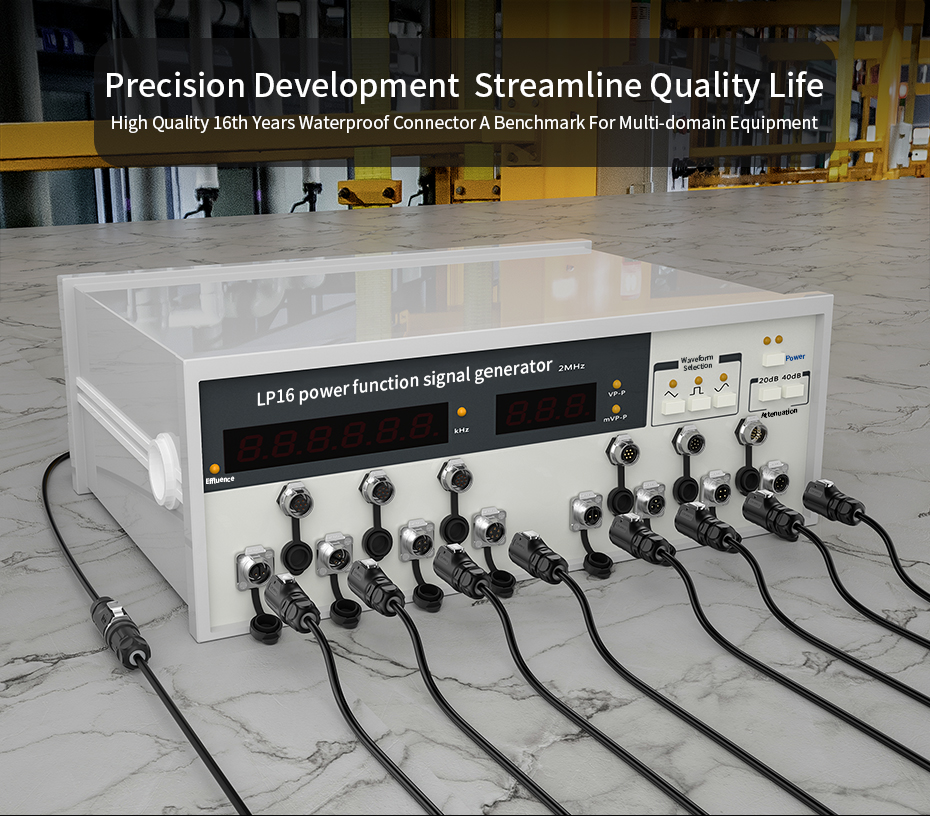

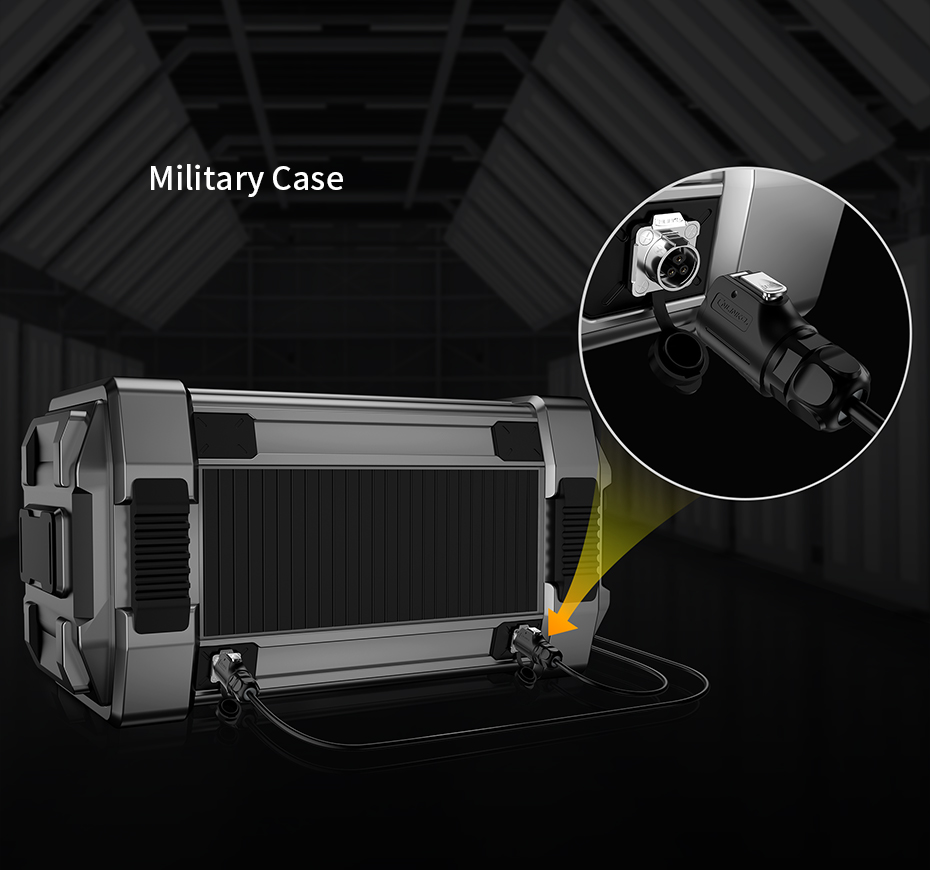

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
