Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors

Name: Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Brand: CNLINKO
Price: 4.08 USD

China Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-12-C05PE-02-001

Certification : UL,ROHS,CCC,ISO9001

MOQ : 2

Price : $4.08-5.08

Type : Signal

Application : Industrial

Gender : male and female

Produce type : m12 connector 5 pin

Current rating(A) : 5A

Protection level : IP67/IP65

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Mate : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Soldering

Operating voltage : 250V

Contact pin : Copper alloy(gold-plated)

Contact Now

Heavy Duty Dust And Water Resistand IP67 In Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Din XLR Connectors

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP67 protection in the assembled state.

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.3~0.5mm² /22~20AWG
Diameter range	Φ3mm ~Φ6mm
Contact diameter×Qty	Φ1.0x4
Current rating(A)	5A
Temperature rise	/
Withstanding voltage(AC.V)1min	1500V
Contact resistance	<5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server

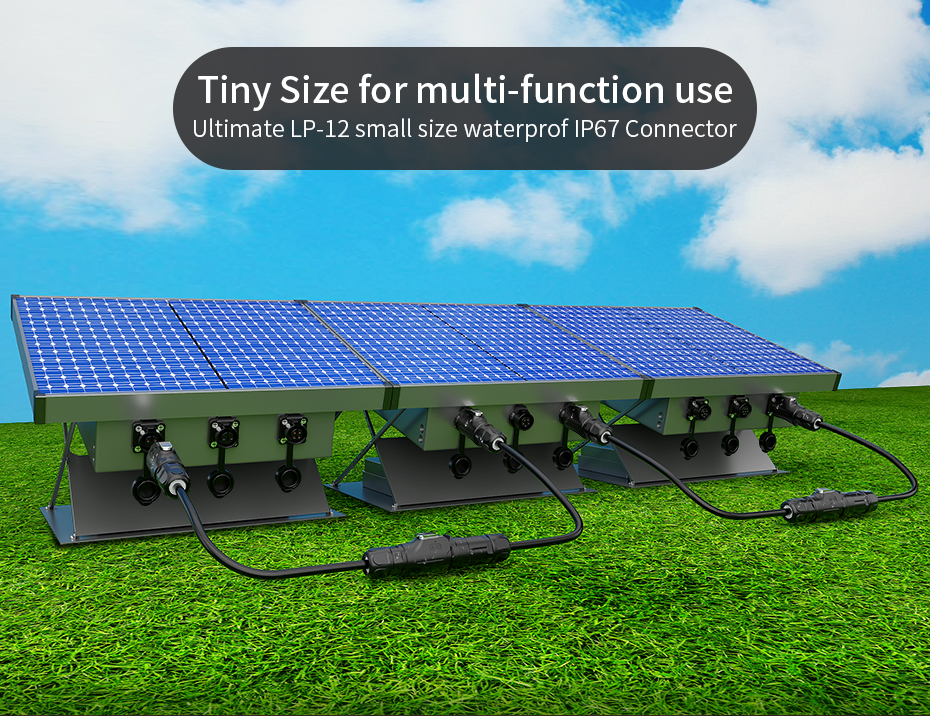

Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
