Cnlinko Ip67 Waterproof Usb 2.0 Connector Usb Female Usb2.0 Extension Cable Connector

Name: Cnlinko Ip67 Waterproof Usb 20 Connector Usb Female Usb20 Extension Cable Connector
Brand: Cnlinko
Price: 6.81 USD

China Cnlinko Ip67 Waterproof Usb 2.0 Connector Usb Female Usb2.0 Extension Cable Connector wholesale

Place of Origin : Guangdong, China

Brand Name : Cnlinko

Model Number : YU-USB2-JSX-01-001

Certification : UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $6.81-13.62

Type : usb

Application : Data

Gender : male and female, Female +male

Protection level : IP65/IP67

Pin : 4pin

Current rating(A) : 2A

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly bayonet connect

Operating voltage : 300V

Product name : USB 2.0 connector

Contact Now

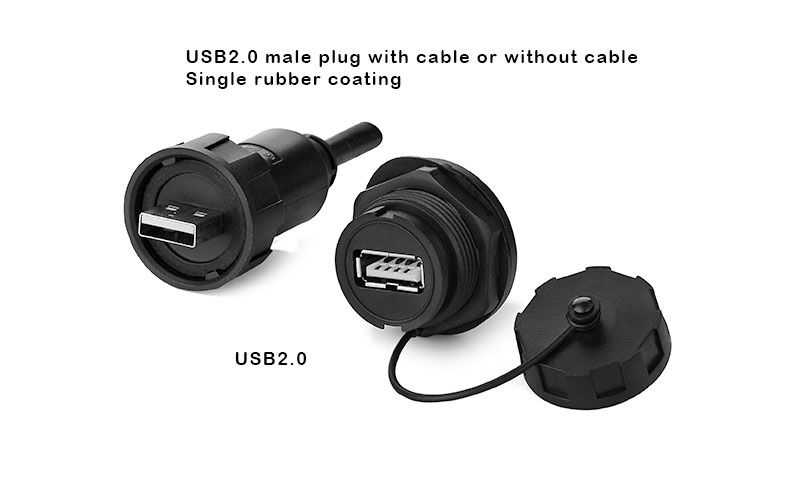

Cnlinko ip68 waterproof usb 2.0 connector usb female usb2.0 extension cable connector

Features:

With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

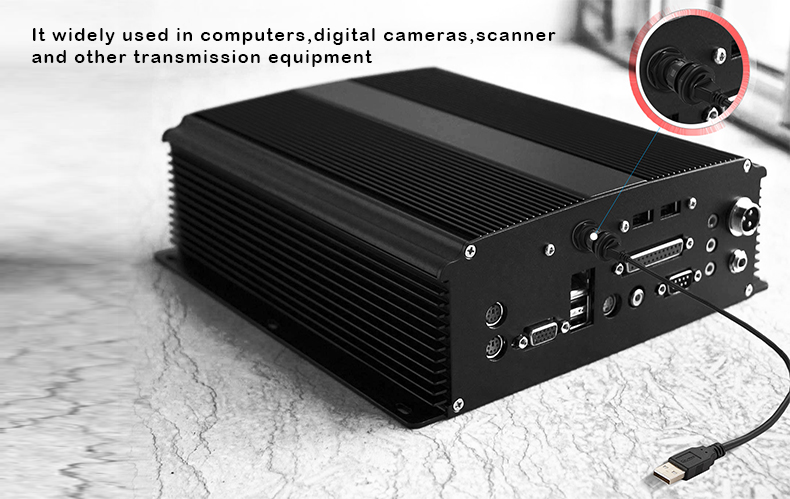

Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5.5mm ~Φmm
Contact diameter×Qty	4
Current rating(A)	1.5A
Temperature rise	/
Withstanding voltage(AC.V)1min	1000V
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics

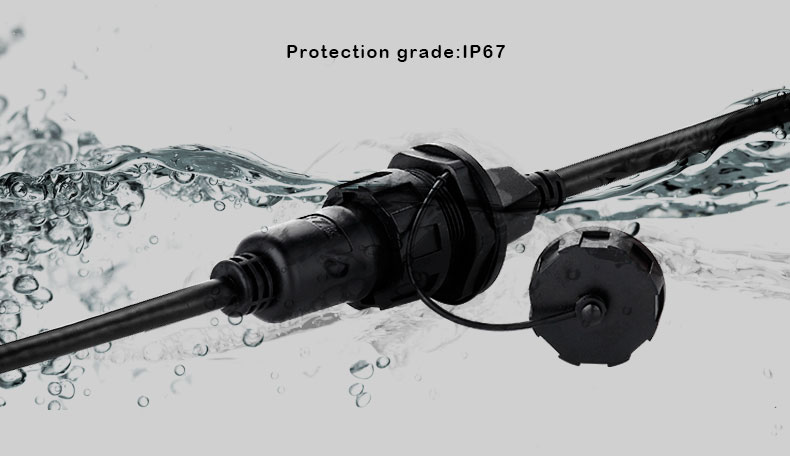

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
