Plastic Panel Mount Socket Waterproof Usb Connector USB2.0 Female to Female Panel Socket Usb Charging Socket Male CNLINKO IP68

Name: Plastic Panel Mount Socket Waterproof Usb Connector USB20 Female to Female Panel Socket Usb Charging Socket Male CNLINKO IP68
Brand: CNLINKO
Price: 2.06 USD

China Plastic Panel Mount Socket Waterproof Usb Connector USB2.0 Female to Female Panel Socket Usb Charging Socket Male CNLINKO IP68 wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YU-USB2-JSX-01-001

MOQ : 10

Price : US$2.06-2.41

Type : usb

Application : Data, data transfering

Gender : Male

Connector type : USB2.0

Waterproof level : IP65

MOQ : 100pcs

Material : Plastic

Pin : 4pin

Rated Voltage : 300V

Rated Current : 2A

IP rating : IP65/IP67/IP68

Certificate : UL,CE,ROHS,CCC,ISO9001

Contact Now

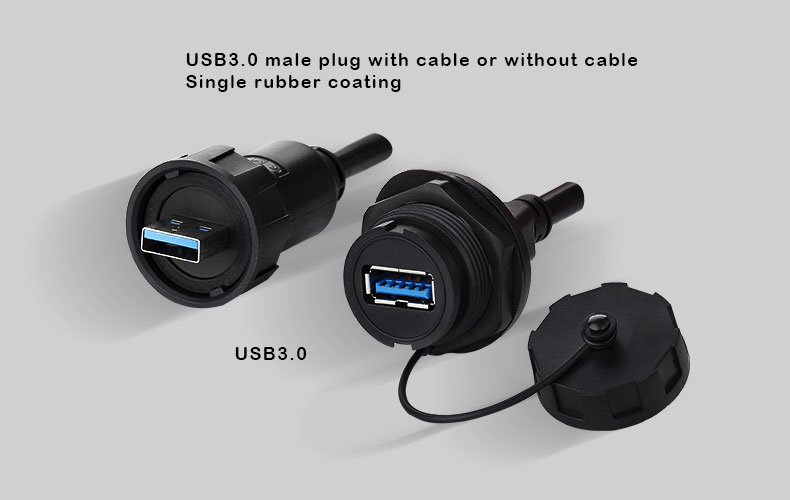

Rugged USB A Female Connector panel mount usb connector

Features:

1. varies types, can achieve male &female conversion docking, independent female, male with cable, etc;
2. independent USB3.0 socket design, easy to install &operate;
3. compatible with USB2.0;
4. sheath of cable protect cable outlet;
5. Cable can be customized;
6. Solid connections system can provide the solutions for data transmission in harsh environments
7. protection level: IP67 Waterproof;
8. More Than 4 PIN USB Connector, USB to RJ11 Connector Similar to Hard Disk.

With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5.5mm ~Φ6.5mm
Contact diameter×Qty	9
Current rating(A)	1.5A
Temperature rise	/
Withstanding voltage(AC.V)1min	1000V
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
